Product Summary
The MC68HC000EI16 OJ82M is a Microprocessor. The MC68HC000EI16 OJ82M is reduced power consumption. The MC68HC000EI16 OJ82M dissipates less power (by an order of magnitude) than the NMOS MC68000. The MC68HC000 is an implementation of the M68000 16/-32 bit microprocessor architecture. The MC68HC000EI16 OJ82M has a 16-bit data bus implementation of the MC68000 and is upward code-compatible with the MC68010 and the MC68020 32-bit implementation of the architecture.
Parametrics
MC68HC000EI16 OJ82M absolute maximum ratings: (1)Supply Voltage VCC: –0.3 to 6.5 V; (2)Input Voltage Vin: –0.5 to 6.5 V; (3)Maximum Operating Temperature Range Commercial Extended c Grade TA TL to TH: 0 to 70℃, –40 to 85 ℃; (4)Storage Temperature Tstg: –55 to 150 ℃.
Features
MC68HC000EI16 OJ82M features: (1)Pin-for-pin compatibility with the MC68EC000 in the plastic QFP and TQFP packages; (2)Vast selection of existing third-party development tools for the MC68EC000 support the MC68SEC000; (3)Software written for the MC68EC000 will run unchanged on the MC68SEC000; (4)Low-power HCMOS technology; (5)Static design allows for stopping the processor clock; (6)3.3V or 5V operation; (7)Typical 0.5 mA current consumption at 3.3V in sleep mode; (8)Fully upward object-code compatible with other M68000 Family products; (9)M68000 architecture allows effective assembly code with a C compiler.

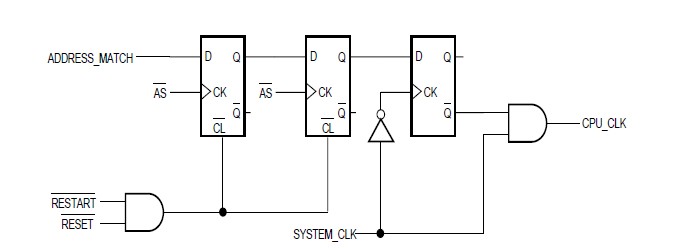

Diagrams
 |
