Product Summary

The K1CK012W is a power relay.

Parametrics

K1CK012W absolute maximum ratings: (1)Maximum Carrying Current: 16 A; (2)Maximum Inrush Current: 80A (20ms)250VAC; (3)Maximum Switching Rating: 4,000 VA / 384W; (4)Maximum Switching Voltage: 440 VAC / 300VDC; (5)Minimum Switching Load: 10 mA 5 VDC; (6)Nominal Power (at 20℃): 400mW (at 430mW 48V coil); (7)Operate Power (at 20℃): 200 mW (210mW at 48V coil); (8)Operating Temperature: -40℃ to +85℃.

Features

K1CK012W features: (1)Peak 80A inrush current (1 form A type); (2)Low profile (height: 15.7mm); (3)HIGH ISOLATION Insulation Distance (between coiand contacts): 10mm min., Dielectric strength: 5KV, Surge strength: 10KV; (4)Class F coiwire; (5)Low coipower (400mW); (6)Cadmium free contacts; (7)SAFETY STANDARDS UL, CSA, VDE, SEMKO approved, UL, CSA TV-5 rating approved (1 form A type); (8)RoHS Compliant; (9)VDE Glow-wire ignitablility test 775 (IEC60335-1)approved.

Diagrams

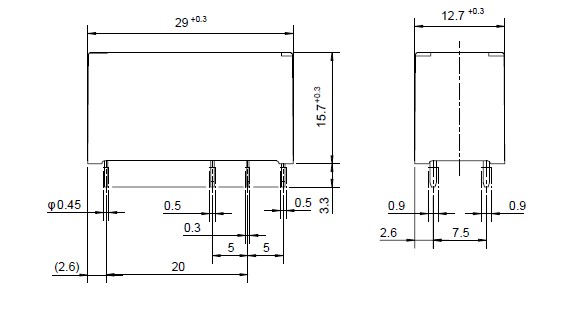

K1CK012W dimension
