Product Summary
The EP1C4F400C8 is a Cyclone FPGA. The EP1C4F400C8 is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phaselocked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, the EP1C4F400C8 is a cost-effective solution for data-path applications. The EP1C4F400C8 supports various I/O standards, including LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz, 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices. Altera also offers new low-cost serial configuration devices to configure Cyclone device.
Parametrics
EP1C4F400C8 absolute maximum ratings: (1)Supply voltage With respect to ground, VCCINT: -0.5 to 2.4 V; (2)VCCIO: -0.5 to 4.6 V; (3)DC input voltage, VI: -0.5 to 4.6 V; (4)DC output current, per pin, IOUT: -25 to 25 mA; (5)Storage temperature No bias, TSTG: -65 to 150℃; (6)Ambient temperature Under bias, TAMB: -65 to 135℃; (7)Junction temperature, BGA packages under bias, TJ: 135℃.
Features
EP1C4F400C8 features: (1)2,910 to 20,060 LEs, see Table 1; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66-MHz, 32-bit PCI standard; (6)Low speed (311 Mbps) LVDS I/O support; (7)Up to two PLLs per device provide clock multiplication and phase shifting; (8)Up to eight global clock lines with six clock resources available per logic array block (LAB) row; (9)Support for external memory, including DDR SDRAM (133MHz), FCRAM, and single data rate (SDR) SDRAM; (10)Support for multiple intellectual property (IP) cores, including Altera. MegaCore. functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions.

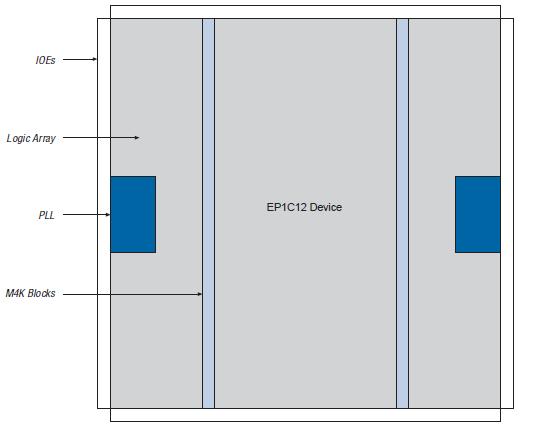

Diagrams
