Product Summary
The PA1A-12V is a slim power relay. Typical applications of the PA1A-12V interface relays for programmable controllers, output relays for measuring equipment, timers, counters and temperature controllers industrial equipment, office equipment.
Parametrics
PA1A-12V absolute maximum ratings: (1)Nominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Maximum switching power: 750 VA, 90 W; (3)Maximum switching voltage: 250 V AC, 110 V DC; (4)Max. switching current: 5 A; (5)Ambient temp.: –40 ℃ to +70 ℃.
Features
PA1A-12V features: (1)Slim size (width 5 mm.197 inch, height 12.5 mm.492 inch)permits higher density mounting; (2)Wide switching capacity: Control from 100 mA 100 mV to 5 A 250 V AC, 30 V DC; (3)High sensitivity: 120 mW (Nominal)(5 to 18 V DC type); (4)High surge voltage (4000 V)and high breakdown voltage (2000 V); (5)Shock & vibration resistance (functional): Min. 147m/s2; (6)SIL (single in line)terminal layout; (7)Reinforced according to IEC1131-2.

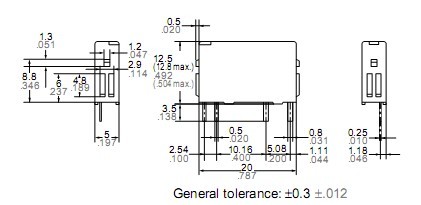

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA1A-12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 12VDC SPST-NO NON-LATCHING |
Data Sheet |
|
|
||||||||||||
 |
PA1A-12V-Y1 |
Panasonic Electric Works |
Relay Sockets & Hardware 1 Form A 12V 3A 250VAC 3A 30VDC |
Data Sheet |
|
|
||||||||||||
