Product Summary
The 67-21/B7C-AS2U1N/2T is a top view LED. The 67-21/B7C-AS2U1N/2T is available in soft orange, green, blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the 67-21/B7C-AS2U1N/2T ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
Parametrics
67-21/B7C-AS2U1N/2T absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 30 mA; (3)Peak Forward Current (Duty 1/10 @1KHz)IFP: 100 mA; (4)Power Dissipation Pd: 110 mW; (5)Electrostatic Discharge (HBM)ESD: 1000 V; (6)Operating Temperature Topr: -40 ~ +85℃; (7)Storage Temperature Tstg: -40 ~ +90℃.
Features
67-21/B7C-AS2U1N/2T features: (1)P-LCC-2 package; (2)White package; (3)Optical indicator; (4)Colorless clear window; (5)Wide viewing angle; (6)Suitable for vapor-phase reflow, Infrared reflow and wave solder processes; (7)Computable with automatic placement equipment; (8)Available on tape and reel (8mm Tape); (9)Pb-free; (10)The product itself will remain within RoHS compliant version.

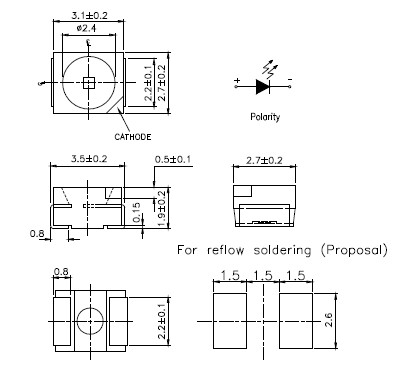

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 67-21/B7C-AS2U1N/2T |
Everlight |
Standard LED - SMD PLCC LED |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
67-21 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
67-21/B3C-BN1Q2N/2T |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
67-21/B7C-AS2U1N/2A0 |
Everlight |
Standard LED - SMD PLCC LED |
Data Sheet |
|
|
||||||||||||
|
67-21/B7C-AS2U1N/2T |
Everlight |
Standard LED - SMD PLCC LED |
Data Sheet |
|
|
||||||||||||
|
67-21/G4C-BQ1T2N/2T |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
67-21/G6C-FN2P2B/2A0 |
Everlight |
Standard LED - SMD PLCC LED |
Data Sheet |
|
|
||||||||||||
