Product Summary
The MC68HC000EI16 is a microprocessor. The MC68HC000EI16 is reduced power consumption. The MC68HC000EI16 dissipates less power (by an order of magnitude) than the NMOS MC68000. The MC68HC000EI16 is an implementation of the M68000 16/-32 bit microprocessor architecture. The MC68HC000EI16 has a 16-bit data bus implementation of the MC68000 and is upward code-compatible with the MC68010 and the MC68020 32-bit implementation of the architecture.
Parametrics
MC68HC000EI16 absolute maximum ratings: (1)Supply Voltage VCC: –0.3 to 6.5 V; (2)Input Voltage Vin: –0.5 to 6.5 V; (3)Maximum Operating Temperature Range Commercial Extended C Grade TA TL to TH 0 to 70: –40 to 85 ℃; (4)Storage Temperature Tstg: –55 to 150 ℃.
Features
MC68HC000EI16 features: (1)Sixteen 32-Bit Data and Address Registers; (2)16-Mbyte Direct Addressing Range; (3)Program Counter; (4)6 Instruction Types; (5)Operations on Five Main Data Types; (6)Memory-Mapped Input/Output (I/O); (7)14 Addressing Modes.

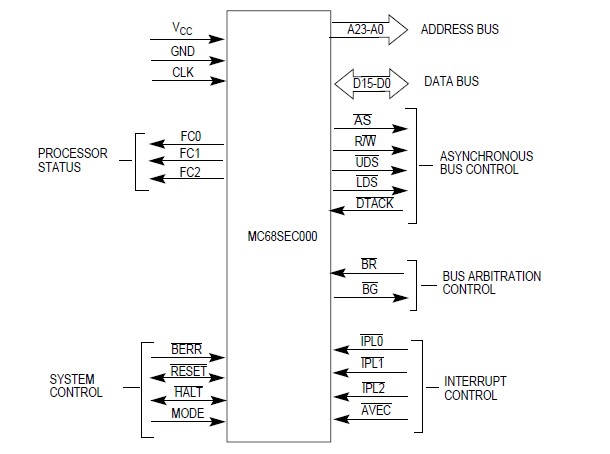

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC000EI16 |
Freescale Semiconductor |
Microprocessors (MPU) 16-BIT MPU |
Data Sheet |
Negotiable |
|
||||
|
MC68HC000EI16R2 |
Freescale Semiconductor |
Microprocessors (MPU) 16-BIT MPU |
Data Sheet |
Negotiable |
|
||||
