Product Summary

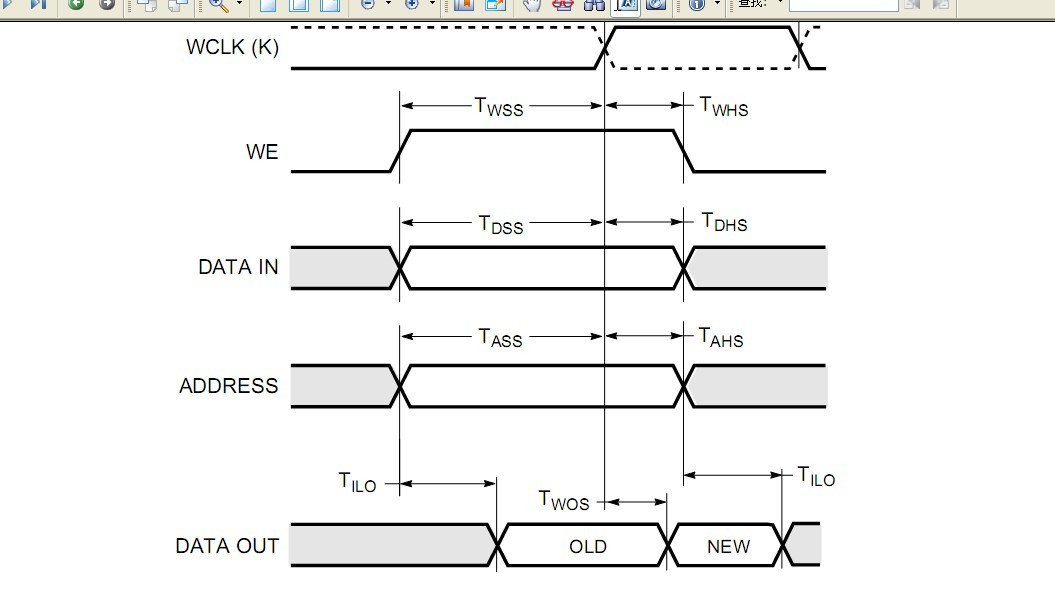

Testing of switching parameters is modeled after testing
methods specified by MIL-M-38510/605. All devices are
100% functionally tested. Internal timing parameters are
derived from measuring internal test patterns. Listed below
are representative values. For more specific, more precise,
and worst-case guaranteed data, use the values reported
by the static timing analyzer (TRCE in the Xilinx Develop-
ment System) and back-annotated to the simulation netlist.
All timing parameters assume worst-case operating condi-
tions (supply voltage and junction temperature). Values
apply to all XQ4000XL devices and expressed in nanosec-
onds unless otherwise noted.

Parametrics

Certified to MIL-PRF-38535 Appendix A QML
(Qualified Manufacturer Listing)
Ceramic and plastic packages
Also available under the following standard microcircuit
drawings (SMD)
- XQ4013XL 5962-98513
- XQ4036XL 5962-98510
- XQ4062XL 5962-98511
- XQ4085XL 5962-99575
For more information contact the Defense Supply
Center Columbus (DSCC)

Features

Development system runs on most common computer
platforms
- Interfaces to popular design environments
- Fully automatic mapping, placement and routing
- Interactive design editor for design optimization
Highest capacity—over 180,000 usable gates
Additional routing over XQ4000E
- Almost twice the routing capacity for high-density
designs
Buffered Interconnect for maximum speed
New latch capability in configurable logic blocks
Improved VersaRing? I/O interconnect for better Fixed
pinout flexibility
- Virtually unlimited number of clock signals
Optional multiplexer or 2-input function generator on
device outputs
5V tolerant I/Os
0.35 μm SRAM process

Diagrams
