Product Summary

The ILBB0402ER121V is a multilayer ferrite bead.

Parametrics

ILBB0402ER121V absolute maximum ratings: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Thermal Shock: 100 cycles, - 40 ℃ to + 125 ℃; (3)RATED DC CURRENT: 300mA.


Features

ILBB0402ER121V features: (1)High reliability; (2)Surface mountable; (3)Magnetically self shielded; (4)Nickel barrier plating virtually eliminates silver migration; (5)100 % lead (Pb)-free and RoHS compliant.

Diagrams

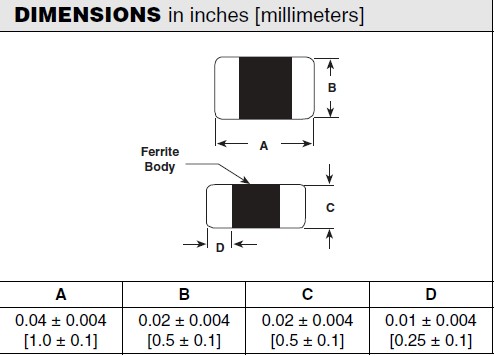

ILBB0402ER121V dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ILBB0402ER121V
ILBB0402ER121V
Vishay/Dale
EMI Filter Beads, Chokes & Arrays 120ohms 25%
Data Sheet
0-1: $0.09
1-100: $0.05
100-500: $0.04
500-1000: $0.03
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ILBB0402ER121V
ILBB0402ER121V
Vishay/Dale
EMI Filter Beads, Chokes & Arrays 120ohms 25%
Data Sheet
0-1: $0.09
1-100: $0.05
100-500: $0.04
500-1000: $0.03
