Product Summary
The DAC714U is a complete monolithic digital-to-analog converter. The DAC714U includes a +10V temperature compensated reference, current-to-voltage amplifier, a high-speed synchronous serial interface, a serial output which allows cascading multiple converters, and an asynchronous clear function which immediately sets the output voltage to midscale. The gain and bipolar offset adjustments of the DAC714U are designed so that they can be set via external potentiometers or external D/A converters. The output amplifier is protected against short circuit to ground.
Parametrics
DAC714U absolute maximum ratings: (1)+VCC to Common: 0V to +17V; (2)–VCC to Common: 0V to –17V; (3)+VCC to –VCC: 34V; (4)ACOM to DCOM: ±0.5V; (5)Digital Inputs to Common: –1V to (VCC –0.7V); (6)External Voltage Applied to BPO and Range Resistors: ±VCC; (7)VREF OUT: Indefinite Short to Common; (8)VOUT: Indefinite Short to Common; (9)SDO: Indefinite Short to Common; (10)Power Dissipation: 750mW; (11)Storage Temperature: –60℃ to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.
Features
DAC714U features: (1)serial digital interface; (2)voltage output: ±10V, ±5V, 0 to +10V; (3)±1 LSB integral linearity; (4)16-BIT monotonic over temperature; (5)precision internal reference; (6)low noise: 120nV/ÖHz including reference; (7)16-lead plastic and ceramic skinny dip and plastic SOIC packages.

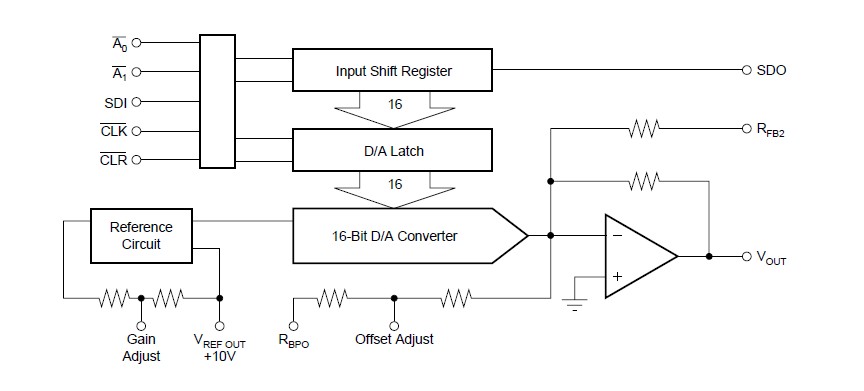

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DAC714U |
![]() Texas Instruments |
![]() DAC (D/A Converters) 16-Bit w/Ser Data Interface |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() DAC714U/1K |
![]() Texas Instruments |
![]() DAC (D/A Converters) 16-Bit w/Ser Data Interface |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() DAC714U/1KG4 |
![]() Texas Instruments |
![]() DAC (D/A Converters) 16-Bit w/Ser Data Interface |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() DAC714UG4 |
![]() Texas Instruments |
![]() DAC (D/A Converters) 16B DAC |
![]() Data Sheet |
![]()
|
|
