Product Summary

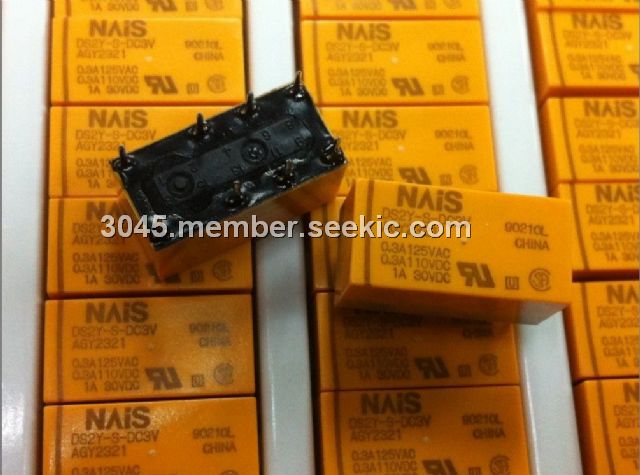

The DS2Y-S-DC3V is a miniature relay.
Parametrics
DS2Y-S-DC3V absolute maximum ratings: (1)Max. switching power: 60 W, 62.5 VA; (2)Max. switching voltage: 220 V DC, 250 V AC; (3)Max. switching current: 2 A; (4)Max. carrying current: 3 A; (5)Ambient temp.: –40 °C to +70 °C.
Features
DS2Y-S-DC3V features: (1)2 Form C contact; (2)High sensitivity-200 mW nominal operating power; (3)High breakdown voltage 1500 V FCC surge between open contacts; (4)DIP-2C type matching 16 pin IC socket; (5)Sealed construction.

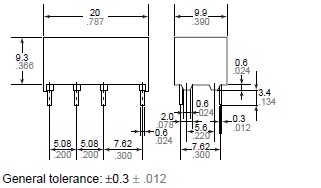

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS2Y-S-DC3V |
Panasonic Electric Works |
General Purpose / Industrial Relays 3VDC 200MW DIP RELAY MINI |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
DS2Y-RELAYS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
DS2Y-S-DC1.5V |
Panasonic Electric Works |
Low Signal Relays - PCB 1.5VDC 200MW DIP RELAY MINI |
Data Sheet |
|
|
||||||||||||
|
DS2Y-S-DC12V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 12VDC DPDT SEALED PCB |
Data Sheet |
|
|
||||||||||||
 |
DS2Y-S-DC12V-R |
Panasonic Electric Works |
Low Signal Relays - PCB 12VDC 200MW DIP RELAY MINI |
Data Sheet |
Negotiable |
|
||||||||||||
|
DS2Y-S-DC12V-TB |
Panasonic Electric Works |
Low Signal Relays - PCB 12VDC 200MW DIP RELAY MINI |
Data Sheet |
|
|
||||||||||||
|
DS2Y-S-DC24V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 24VDC DPDT SEALED PCB |
Data Sheet |
|
|
||||||||||||
