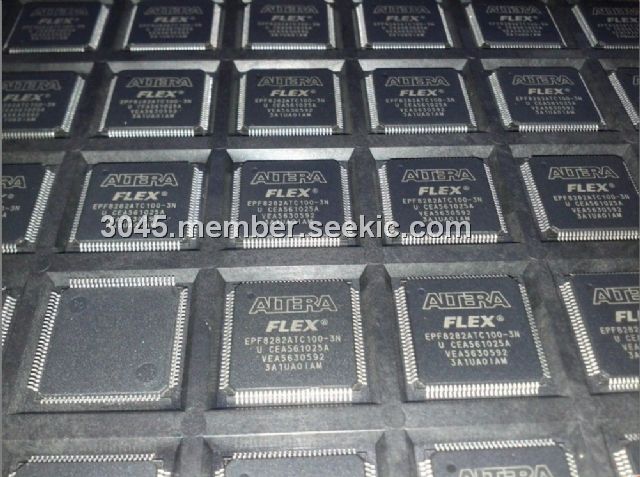

EPF8282ATC100-3

Alteras Flexible Logic Element MatriX, 7.0 V, 25 mA, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~99.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~99.00

PartNumber:: EPF8282ATC100-3

Brand:: Altera Corporation - ALTR | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. David's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:EPF8282ATC100-3
US $1.00 - 99.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

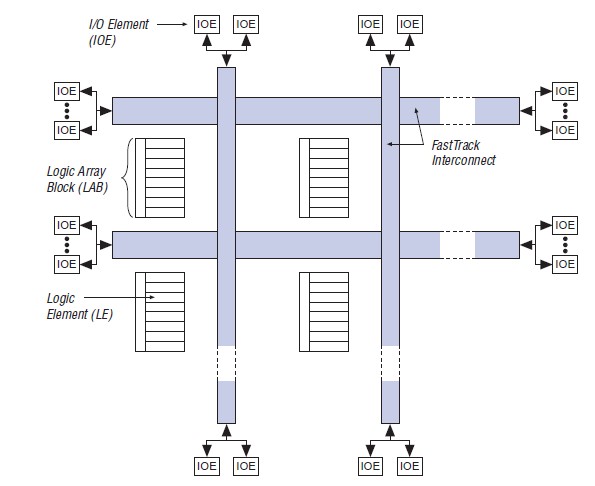

The EPF8282ATC100-3 is an Alteras Flexible Logic Element MatriX (FLEX ). The EPF8282ATC100-3 combines the benefits of both erasable programmable logic devices (EPLDs) and fieldprogrammable gate arrays (FPGAs). The EPF8282ATC100-3 is ideal for a variety of applications because it combines the fine-grained architecture and high register count characteristics of FPGAs with the high speed and predictable interconnect delays of EPLDs. Logic is implemented in LEs that include compact 4-input look-up tables (LUTs) and programmable registers. High performance is provided by a fast, continuous network of routing resources.

Parametrics

EPF8282ATC100-3 absolute maximum ratings: (1)VCC Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI DC input voltage: –2.0 to 7.0 V; (3)IOUT DC output current, per pin: –25 to 25 mA; (4)TSTG Storage temperature No bias: –65 to 150 ℃; (5)TAMB Ambient temperature Under bias: –65 to 135 ℃; (6)TJ Junction temperature Ceramic packages, under bias: 150 ℃, PQFP and RQFP, under bias: 135 ℃.

Features

EPF8282ATC100-3 features: (1)Low-cost, high-density, register-rich CMOS programmable logic device (PLD)family; (2)In-circuit reconfigurability (ICR)via external Configuration EPROM or intelligent controller; (3)Fully compliant with the peripheral component interconnect (PCI)standard; (4)Built-in Joint-Test Action Group (JTAG)boundary-scan test (BST)circuitry compliant with IEEE Std. 1149.1-1990 on selected devices; (5)MultiVolt I/O interface enabling device core to run at 5.0 V, while I/O pins are compatible with 5.0-V and 3.3-V logic levels; (6)Low power consumption (typical specification less than 0.5 mA in standby mode).
