Product Summary

The TDA1010A is a monolithic integrated class-B audio amplifier circuit in a 9-lead single in-line (SIL) plastic package. The TDA1010A is primarily developed as a 6 W car radio amplifier for use with 4 Ω and 2 Ω load impedances. The wide supply voltage range and the flexibility of the TDA1010A make it an attractive proposition for record players and tape recorders with output powers up to 10 W.

Parametrics

TDA1010A absolute maximum ratings: (1)Supply voltage: 24V; (2)Peak output current: 5A; (3)Repetitive peak output current: 3A; (4)Storage temperature Tstg: -55 to +150°C; (5)Operating ambient temperature Tamb: -25 to +150°C.

Features

TDA1010A features: (1)single in-line (SIL) construction for easy mounting; (2)separated preamplifier and power amplifier; (3)high output power; (4)low-cost external components; (5)good ripple rejection; (6)thermal protection.

Diagrams

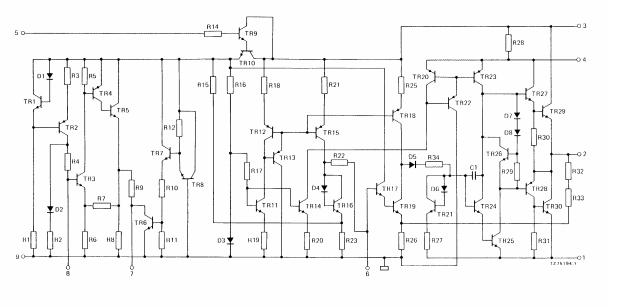

TDA1010A block diagram
