Product Summary

The MAX1113EEE is a low-power, 8-bit, 8-channel analog-to-digital converter(ADC) that features an internal track/hold, voltage reference, clock, and serial interface. They operate from a single +4.5V to +5.5V supply and consume only 135μA while sampling at rates up to 50ksps. Application areas of the MAX1113EEE include Portable Data Logging, Hand-Held Measurement Devices.

Parametrics

MAX1113EEE absolute maximum ratings: (1)VDD to AGND: -0.3V to 6V; (2)AGND to DGND: -0.3V to 0.3V; (3); (4)REFOUT to AGND : -0.3V to (VDD + 0.3V); (5)Digital Inputs to DGND : -0.3V to 6V; (6)Digital Outputs to DGND: -0.3V to (VDD + 0.3V).

Features

MAX1113EEE features: (1)+4.5V to +5.5V Single Supply; (2)Low Power: 135μA at 50ksps 13μA at 1ksps; (3)8-Channel Single-Ended or 4-Channel Differential Inputs(MAX1112); (4)4-Channel Single-Ended or 2-Channel Differential Inputs(MAX1113); (5)Internal Track/Hold; 50kHz Sampling Rate; (6)Internal 4.096V Reference; (7)SPI/QSPI/MICROWIRE-Compatible Serial Interface.

Diagrams

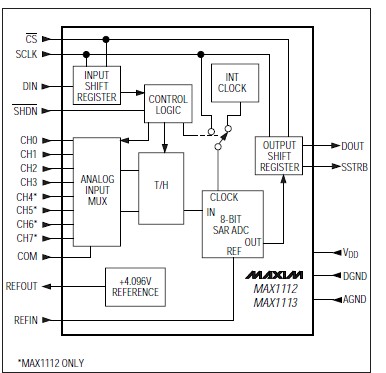

MAX1113EEE block diagram
