Product Summary
The MJ11029 is a complementary darlington power transistor. Application areas of the MJ11029 include complementary general purpose amplifier.
Parametrics
MJ11029 absolute maximum ratings: (1)Collector – Emitter Voltage: 60V; (2)Collector – Base Voltage: 60V; (3)Emitter – Base Voltage: 5V; (4)Continuous Collector Current: 50A; (5)Peak Collector Current: 100A.
Features
MJ11029 features: (1)high dc current gain; (2)curves to 100a (pulsed); (3)diode protection to rated ic; (4)monolithic construction with built-in base-emitter shunt resistor; (5)junction temperature to +200℃.

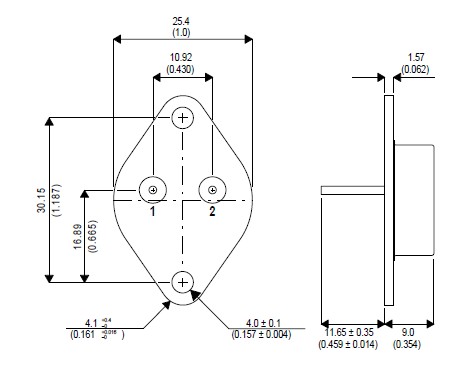

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ11029G |
ON Semiconductor |
Transistors Darlington 50A 60V Bipolar Power PNP |
Data Sheet |
Negotiable |
|
||||
|
MJ11029 |
ON Semiconductor |
Transistors Darlington 50A 60V Bipolar |
Data Sheet |
Negotiable |
|
||||
