Product Summary

HIGH TEMPERATURE, EXTENDED LOAD LIFE, RADIAL LEADS, POLARIZED
FEATURES
? HIGH RIPPLE CURRENT AT HIGH TEMPERATURE (105°C)
? IDEAL FOR HIGH VOLTAGE LIGHTING BALLAST
? REDUCED SIZE (FROM NRBX)

Parametrics

Rated Voltage Range 160 ~ 450VDC
Capacitance Range 1.0 ~ 220μF
Operating Temperature Range -25°C ~ +105°C
Capacitance Tolerance ±20% (M)
Maximum Leakage Current @ +20°C
CV < 1,000μF CV > 1,000μF
0.1CV +40μA (1 minute)
0.03CV +15μA (5 minutes)
0.04CV +100μA (1 minute)
0.02CV +25μA (5 minutes)
Max. Tan δ at 120Hz/20°C
W.V. (Vdc) 160 200 250 350 400 450
S.V. (Vdc) 200 250 300 400 450 500
Tan δ 0.15 0.15 0.15 0.20 0.20 0.20
Low Temperature Stability
Impedance Ratio @ 120Hz
Z-25°C/Z+20°C 3 3 3 6 6 6
Load Life at W.V. & 105°C
11.5mm, 10x12.5mm: 5,000 Hours
0x16mm, 10x20mm: 8,000 Hours
φD > 12.5mm: 10,000 Hours
? Capacitance Within ±20% of initial measured value
? Tan δ Less than 200% of specif ed value
? LC Less than specif ed value

Features

HIGH RIPPLE CURRENT AT HIGH TEMPERATURE (105°C)
DEAL FOR HIGH VOLTAGE LIGHTING BALLAST
REDUCED SIZE (FROM NRBX)

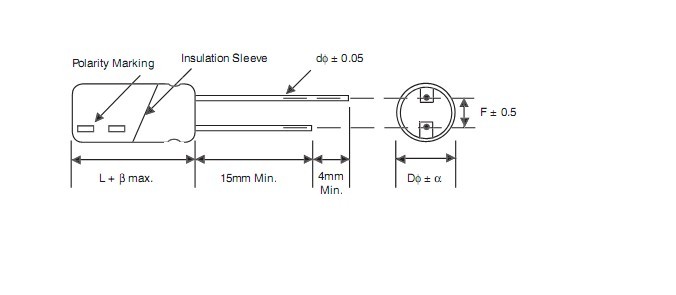

Diagrams
