Product Summary

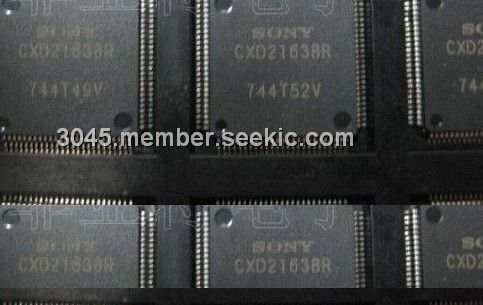

The CXD2163BR is a signal processor LSI for Ye, Cy, Mg and G single-chip CCD color cameras. In addition to basic camera single processing functions, it includes an AE/AWB detection circuit, a sync signal generation circuit and an external sync circuit, etc. this chip also has a buit-in microcontroller to realize basic camera functions without a microcomputer. The applications of the CXD2163BR include Industrial CCD caermas, Multimedia CCD cameras (teleconferencing/personal computer camaras).
Parametrics
CXD2163BR absolute maximum ratings: (1)Supply voltage, VDD: Vss -0.5 to +7.0V; (2)Input voltage, VI: Vss -0.5 to VDD +0.5V; (3)Output voltage, VO: Vss -0.5 to VDD +0.5V; (4)Operating temperature, TOPR: -20 to +75℃; (5)Storage temperature, Tstg: -55 to +150℃.
Features
CXD2163BR features: (1)Single-chip CCD camera sync signal generation and huminance/ chroma signal processing; (2)Supports NTSC/PAL modes; (3)Supports 360H/510H/720H/760H system CCD Image sensors; (4)Y/C digtal output pin (2 mode selection), CCIR601 or 8-bit straight format; (5)Built-in 8-bit A/D converter; (6)External 9/10-bit A/D converter can be selected; (7)Suppoits external sync functions (LL, VS, VBS, etc.); (8)Sync separation circuit, phase comparator; (9)AE/AWB detector; (10)Block control functions with a built-in microcontroller-AE/AWB/YC/CLAMP/SG control functions ; (11)Peripheral IC comminication control functions - TG, EVR, EEPROM communication control.
Diagrams
 |
