Product Summary

The LM3886T is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4W load and 38W into 8W with 0.1% (THD + N) from 20 Hz–20 kHz. The performance of the LM3886T, utilizing its Self Peak Instantaneous Temperature Protection Circuitry, puts it in a class above discrete and hybrid amplifiers by providing an inherently, dynamically protected Safe Operating Area (SOA). SPiKe Protection means that these parts are completely safeguarded at the output against overvoltage, undervoltage, overloads, including shorts to the supplies, thermal runaway, and instantaneous temperature peaks.

Parametrics

LM3886T absolute maximum ratings: (1)Supply Voltage |V+|+|V-| : 94V; (2)Supply Voltage |V+|+|V-| : 84V; (3)Differential Input Voltage: 60V; (4)Power Dissipation: 125W; (5)Junction Temperature: 150℃; (6)Soldering Information T Package (10 seconds): 260℃; (7)Storage Temperature: -40℃ to +150℃.

Features

LM3886T features: (1)38W cont. avg. output power into 8W at VCC = ±28V; (2)50W cont. avg. output power into 8W at VCC = ±35V; (3)135W instantaneous peak output power capability; (4)Signal-to-Noise Ratio: 92 dB; (5)Ainput mute function; (6)Output protectiofrom a short to ground or to the supplies via internal current limiting circuitry; (7)Output over-voltage protectioagainst transients from inductive loads; (8) 11-lead TO-220 package.

Diagrams

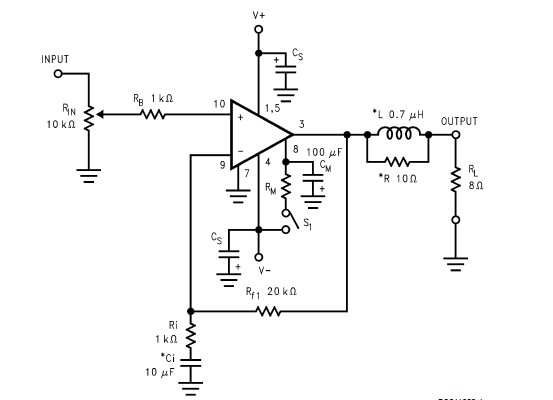

LM3886T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM3886T
LM3886T

National Semiconductor (TI)

Audio Amplifiers

Data Sheet

0-140: $3.16
140-260: $2.88
260-500: $2.51
500-1000: $2.01
LM3886TF
LM3886TF

National Semiconductor (TI)

Audio Amplifiers

Data Sheet

0-140: $3.16
140-260: $2.88
260-500: $2.51
500-1000: $2.01
LM3886TF/NOPB
LM3886TF/NOPB

National Semiconductor (TI)

Audio Amplifiers HIGH-PERF 68W AUDIO PWR AMP

Data Sheet

0-1: $4.03
1-25: $3.24
25-100: $2.95
100-250: $2.66
LM3886T/NOPB
LM3886T/NOPB

National Semiconductor (TI)

Audio Amplifiers HIGH-PERF 68W AUDIO PWR AMP

Data Sheet

0-1: $4.03
1-25: $3.24
25-100: $2.95
100-250: $2.66
