Product Summary
The MRF141G is an N-channel broadband RF power mosfet. The MRF141G is designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of the MRF141G makes possible solid state transmitters for FM broadcast or TV channel frequency bands.
Parametrics
MRF141G absolute maximum ratings: (1)Drain–Source Voltage VDSS: 65 Vdc; (2)Drain–Gate Voltage VDGO: 65 Vdc; (3)Gate–Source Voltage VGS: ±40 Vdc; (4)Drain Current — Continuous ID: 32 Adc; (5)Total Device Dissipation @ TC = 25℃ PD: 500 Watts; (6)Storage Temperature Range Tstg: –65 to +150 ℃; (7)Operating Junction Temperature TJ: 200 ℃.
Features
MRF141G features: (1)Output voltage ranges: (1)Guaranteed Performance at 175 MHz, 28 V: Output Power — 300 W, Gain — 12 dB (14 dB Typ), Efficiency — 50%; (2)Low Thermal Resistance — 0.35℃/W; (3)Ruggedness Tested at Rated Output Power; (4)Nitride Passivated Die for Enhanced Reliability.

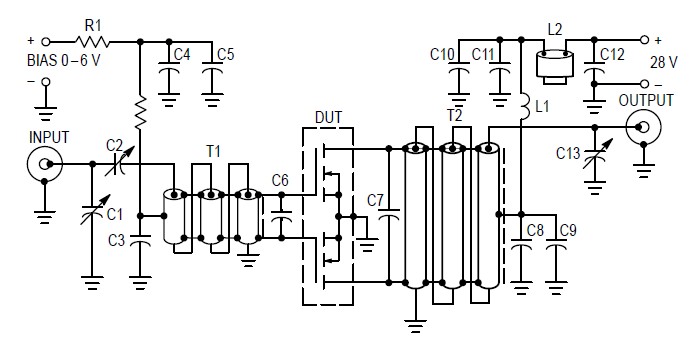

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF141G |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-175MHz 300Watts 28Volt Gain 12dB |
Data Sheet |
|
|
||||||||||||
