Product Summary
The SB560-E3/73-ND is a schottky barrier rectifier.
Parametrics
SB560-E3/73-ND absolute maximum ratings: (1)Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR: 60 V; (2)RMS Reverse Voltage VR(RMS): 42 V; (3)Average Rectified Output Current (See Figure 1) IO: 5.0 A; (4)Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)IFSM: 150 A; (5)Forward Voltage @ IF = 5.0A VFM: 0.67 V; (6)Peak Reverse Current @ TA = 25℃ at Rated DC Blocking Voltage @ TA = 100℃ IRM: 50mA; (7)Operating Temperature Range Tj: -65 to +125 -65 to +150℃; (8)Storage Temperature Range TSTG: -65 to +150℃.
Features
SB560-E3/73-ND features: (1)Epitaxial Construction; (2)Guard Ring Die Construction for Transient Protection; (3)Low Power Loss, High Efficiency; (4)High Surge Capability; (5)High Current Capability and Low Forward Voltage Drop; (6)Surge Overload Rating to 150A Peak; (7)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications.
"

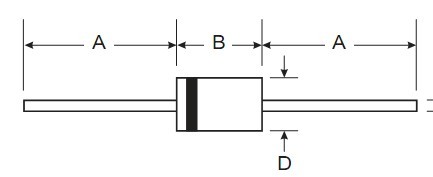

Diagrams
 |
 SB560 |
Fairchild Semiconductor |
Schottky (Diodes & Rectifiers) 5a/60V Rectifier Schottky Barrier |
Data Sheet |
|
|
||||||||||||
 |
SB560 DO-201 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SB560/1 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 5.0 Amp 60 Volt 220A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||||||||||
|
SB560/23 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 5.0 Amp 60 Volt 220A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||||||||||
|
SB560/4 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 5.0 Amp 60 Volt 220A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||||||||||
|
SB560/51 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 5.0 Amp 60 Volt 220A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||||||||||
