Product Summary

The STM32F100C4T6B is a low & medium-density value line, advanced ARM-based 32-bit MCU. The STM32F100C4T6B value line family incorporates the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. All devices offer standard communication interfaces (up to two I2Cs, two SPIs, one HDMI CEC, and up to three USARTs), one 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers and an advanced-control PWM timer.

Parametrics

STM32F100C4T6B absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): –0.3 to 4.0 V; (2)VIN Input voltage on five volt tolerant pin VSS: 0.3 to +5.5V; (3)Input voltage on any other pin VSS: 0.3 VDD+0.3; (4)Variations between different VDD power pins: 50 mV; (5)Variations between all the different ground pins: 50 mV; (6)TSTG Storage temperature range: –65 to +150 ℃; (7)TJ Maximum junction temperature: 150 ℃.

Features

STM32F100C4T6B features: (1)24 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1)performance; (2)Single-cycle multiplication and hardware division; (3)2.0 to 3.6 V application supply and I/Os; (4)POR, PDR and programmable voltage detector (PVD); (5)4-to-24 MHz crystal oscillator; (6)Internal 8 MHz factory-trimmed RC; (7)Internal 40 kHz RC; (8)PLL for CPU clock; (9)32 kHz oscillator for RTC with calibration; (10)Up to three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter; (11)16-bit, 6-channel advanced-control timer: up to 6 channels for PWM output, dead time generation and emergency stop; (12)One 16-bit timer, with 2 IC/OC, 1 OCN/PWM, dead-time generation and emergency stop.

Diagrams

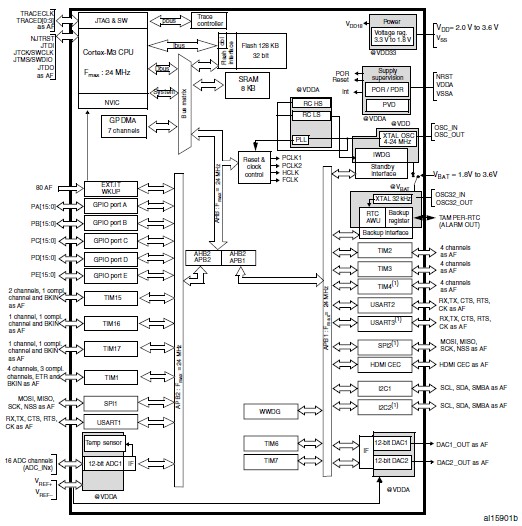

STM32F100C4T6B pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32F100C4T6B
STM32F100C4T6B

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT CORTEX M3 48PINS 16KB

Data Sheet

0-1: $1.64
1-10: $1.32
10-100: $1.18
100-250: $1.06
