Product Summary

The TRF7960RHBR is an integrated analog front end data framing system for a 13.56 MHz RFID reader system. Built-in programming options make it suitable for a wide range of applications both in proximity and vicinity RFID systems. The applications of the TRF7960RHBR are Secure access control, Product authentication, Printer ink cartridges, Blood glucose monitors and Contactless payment systems.

Parametrics

TRF7960RHBR absolute maximum ratings: (1)VIN Supply voltage: 6 V; (2)Output current: 150 mA; (3)Maximum junction temperature, any condition: 140℃; (4)Maximum junction temperature, continuous operation, long term reliability: 125℃; (5)tg Storage temperature range: – 55 to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300 ℃; (7)HBM (Human Body Model): 2 kV; (8)ESDS rating: 500V.

Features

TRF7960RHBR features: (1)Completely integrated protocol handling (OSI Model Layer 3 and below); (2)Separate internal high-PSRR power supplies for analog, digital, and PA sections provides noise isolation for superior read range and reliability; (3)Dual receiver input with AM and PM demodulation to minimize communication holes (patent pending).; (4)Receiver AM and PM RSSI; (5)Reader-to-reader anti-collision; (6)High Integration reduces total BOM and board area.

Diagrams

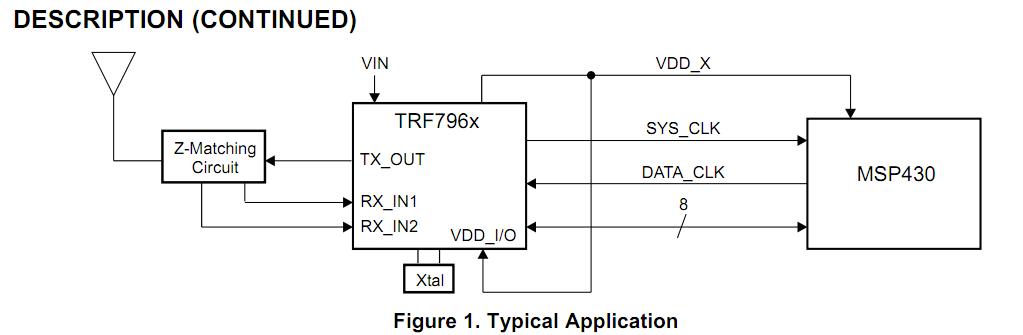

TRF7960RHBR block diagram
