Product Summary
The TA7120P is a general purpose pre-amplifier, voltage amplifier.
Parametrics
TA7120P absolute maximum ratings: (1)Supply Voltage Vcc: 15 V; (2)Power Dissipation PD: 200 mW; (3)Operating Temperature Topr: -30-75 ℃; (4)Storage Temperature Tstg: -55 -125 ℃.
Features
TA7120P features: (1)Low Noise: Vj|i=2μVrms (Typ.); (2)Wide Operating Supply Voltage Range; (3)High Open Loop Voltage Gain : Gvo=78dB (Typ.).

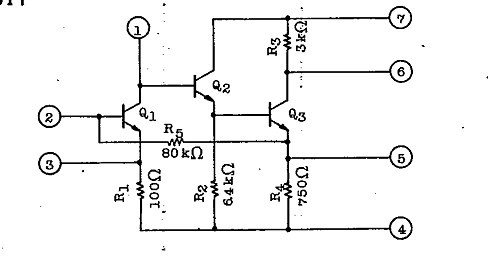

Diagrams
 |
