Product Summary

The ACF451832-333-TD01 is a 3-terminal filters for signal line and DC power line SMD.

Parametrics

ACF451832-333-TD01 absolute maximum ratings: (1)Maximum attenuation frequency: 12MHz; (2)25dB attenuation frequency range: 7 to 60mhz; (3)Rated voltage Edc (V)max.: 50V; (4)Rated current (mA)max.: 300mA.


Features

ACF451832-333-TD01 features: (1)The ACF series are T-type EMC filters incorporating ferrite chip beads and multilayer ceramic chip capacitors; (2)The external structure consists entirely of ferrite, enabling these parts to achieve superior attenuation characteristics despite their extremely compact dimensions; (3)Because they can be mounted on edge, the ACF series are ideal for high-density circuit configurations; (4)Available for reflow soldering.

Diagrams

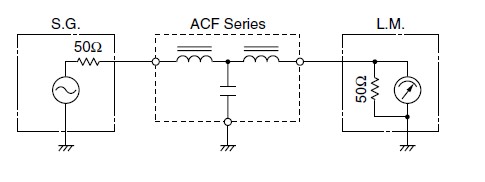

ACF451832-333-TD01 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ACF451832-333-TD01
ACF451832-333-TD01

TDK

EMI Filters Signal Line EMI Filter

Data Sheet

0-1: $0.37
1-10: $0.31
10-25: $0.30
25-50: $0.29
