Product Summary

The ATMEGA8535L-8AU is a Microcontroller. The ATMEGA8535L-8AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing instructions in a single clock cycle, the ATMEGA8535L-8AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA8535L-8AU absolute maximum ratings: (1)Operating Temperature: -55°C to +125°C ; (2)Storage Temperature : -65°C to +150°C; (3)Voltage on any Pin except RESET with respect to Ground : -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage : 6.0V; (6)DC Current per I/O Pin : 40.0 mA; (7)DC Current VCC and GND Pins : 200.0 PDIP og.

Features

ATMEGA8535L-8AU features: (1)Simple yet Powerful and Flexible Communication Interface, only Two Bus Lines Needed; (2)Both Master and Slave Operation Supported; (3)Device can Operate as Transmitter or Receiver; (4)7-bit Address Space Allows up to 128 Different Slave Addresses; (5)Multi-master Arbitration Support; (6)Up to 400 kHz Data Transfer Speed; (7)Slew-rate Limited Output Drivers; (8)Noise Suppression Circuitry Rejects Spikes on Bus Lines; (9)Fully Programmable Slave Address with General Call Support; (10)Address Recognition Causes Wake-up when AVR is in Sleep Mode.

Diagrams

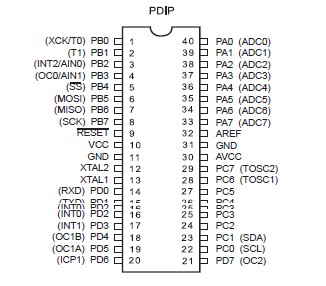

ATMEGA8535L-8AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATmega8535L-8AU
ATmega8535L-8AU
Atmel
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 32 I/O 16MHz
Data Sheet
0-1: $2.42
1-10: $2.02
10-25: $1.52
25-100: $1.37
