Product Summary

TheLM3670MF-ADJ is a step-down DC-DC converter.The LM3670MF-ADJ is optimized for powering ultra-low voltage circuits from a single Li-Ion cell or 3 cell NiMH/NiCd batteries. It provides up to 350 mA load current, over an input voltage range from 2.5V to 5.5V. There are several different fixed voltage output options available as well as an adjustable output voltage version. The LM3670MF-ADJ offers superior features and performance for mobile phones and similar portable applications with complex power management systems. Automatic intelligent switching between PWM low-noise and PFM low-current mode offers improved system control.

Parametrics

LM3670MF-ADJ absolute maximum ratings: (1)VIN Pin: Voltage to GND: -0.2V to 6.0V; (2)EN Pin: Voltage to GND: -0.2V to 6.0V; (3)FB, SW Pin: (GND-0.2V)to (VIN + 0.2V); (4)Junction Temperature (TJ-MAX): -45℃ to +125℃; (5)Storage Temperature Range: -45℃ to +150℃; (6)Maximum Lead Temperature (Soldering, 10 sec.): 260℃.

Features

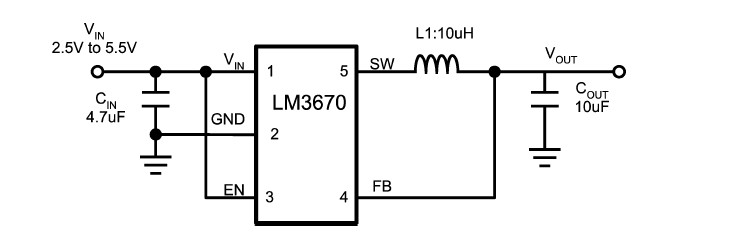

LM3670MF-ADJ features: (1)VOUT = adj (.7V min), 1.2, 1.5, 1.6, 1.8, 1.875, 2.5, 3.3V; (2)2.5V ≤ VIN ≤ 5.5V; (3)15 μA typical quiescent current; (4)350 mA maximum load capability; (5)1 MHz PWM fixed switching frequency (typ.); (6)Automatic PFM/PWM mode switching; (7)Available ifixed output voltages as well as aadjustable version; (8)SOT23-5 package; (9)Low drop out operatio- 100% duty cycle mode; (10)Internal synchronous rectificatiofor high efficiency; (11)Internal soft start; (12)0.1 μA typical shutdowcurrent; (13)Operates from a single Li-Iocell or 3 cell NiMH/NiCd batteries; (14)Only three tiny surface-mount external components required (one inductor, two ceramic capacitors); (15)Current overload protection.
