Product Summary

The OP07CP is an Ultralow Offset Voltage Operational Amplifier. It has very low input offset voltage (75 μV maximum for OP07E) that is obtained by trimming at the wafer stage. The low offset voltage generally eliminates any need for external nulling. The OP07CP also features low input bias current (±4 nA for the OP07E) and high open-loop gain (200 V/mV for the OP07E). The low offset and high open-loop gain make the OP07CP particularly useful for high gain instrumentation applications. The applications of the OP07CP include Wireless base station control circuits, Optical network control circuits, Instrumentation, Sensors and controls.

Parametrics

OP07CP absolute maximum ratings: (1)Supply Voltage (VS): ±22 V; (2)Input Voltage: ±22 V; (3)Differential Input Voltage: ±30 V; (4)Output Short-Circuit Duration Indefinite Storage Temperature Range: S and P Packages: -65℃ to +125℃; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature: 150℃; (7)Lead Temperature, Soldering (60 sec): 300℃.

Features

OP07CP features: (1)Low VOS: 75 μV maximum; (2)Low VOS drift: 1.3 μV/℃ maximum; (3)Ultrastable vs. time: 1.5 μV per month maximum; (4)Low noise: 0.6 μV p-p maximum; (5)Wide input voltage range: ±14 V typical; (6)Wide supply voltage range: 3 V to 18 V; (7)125℃ temperature-tested dice.

Diagrams

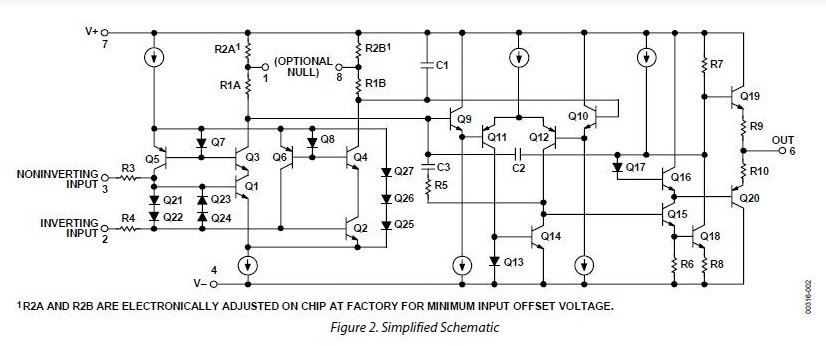

OP07CP circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OP07CP
OP07CP

Texas Instruments

Operational Amplifiers - Op Amps Low Offset Volt Prec

Data Sheet

0-1: $0.48
1-25: $0.43
25-100: $0.33
100-250: $0.32
OP07CP+
OP07CP+

Maxim Integrated Products

Operational Amplifiers - Op Amps

Data Sheet

Negotiable
OP07CPE4
OP07CPE4

Texas Instruments

Operational Amplifiers - Op Amps Low-Offset Voltage Op Amp

Data Sheet

0-1: $0.59
1-25: $0.47
25-100: $0.42
100-250: $0.37
OP07CPZ
OP07CPZ


IC OPAMP GP LDRIFT LN 8DIP

Data Sheet

0-1: $0.94
1-10: $0.85
10-25: $0.76
25-100: $0.68
100-250: $0.60
250-500: $0.53
500-1000: $0.44
1000-2500: $0.41
2500-5000: $0.40
