Product Summary

The M34283G2GP is a single-chip 4-bit CMOS microcomputer. Its applications include various remote control transmitters.

Parametrics

M34283G2GP absolute maximum ratings: (1)supply voltage: -0.3 to 5V; (2)input voltage: -0.3 to VDD+0.3V; (3)Output voltage: -0.3 to VDD+0.3V; (4)Power dissipation: 300mW; (5)operating temperature range: -20 to 85℃; (6)storage temperature range: -40 to 125℃.

Features

M34283G2GP features: (1)number of basic instructions: 68; (2)minimum instruction execution time: 8; (3)supply voltage: 1.8 to 3.6V; (4)subroutine nesting: 4levels; (5)power-on reset circuit.

Diagrams

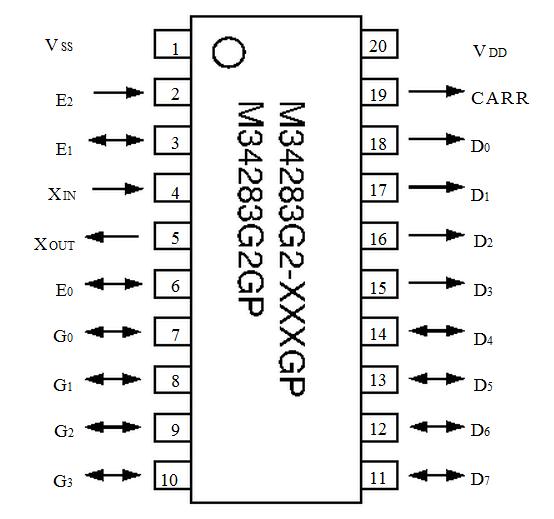

M34283G2GP pin configuration
