Product Summary
The MRF171 is a gold metallized N-Channel Enhancement mode MOSFET, intended for use in 28 VDC large signal applications to 200 MHz.
Parametrics
MRF171 absolute maximum ratings: (1)ID: 4.5 A; (2)VDSS: 65 V; (3)VDGR: 65 V; (4)VGS: ± 40 V; (5)PDISS: 115 W @ TC = 25 °C; (6)TJ: -65 °C to +200 °C; (7)TSTG: -65 °C to +150 °C; (8)θJC: 1.52 °C/W.
Features
MRF171 features: (1)PG = 12 dB min at 150 MHz; (2)Omnigold Metalization System; (3)2 – 200 MHz operation.

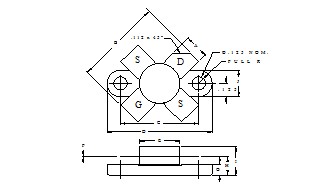

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MRF171 |
Advanced Semiconductor, Inc. |
Transistors RF MOSFET Power RF Transistor |
Data Sheet |
|
|
|||||||||||||
MRF171A |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 100-200MHz 45Watts 28Volt Gain 17dB |
Data Sheet |
|
|
