Product Summary

The PIC12C508A is a low-cost, high performance, 8-bit, fully static, EEPROM/EPROM/ROM-based CMOS microcontroller. The PIC12C508A employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1 µs) except for program branches which take two cycles. The PIC12C508A delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

Parametrics

PIC12C508A absolute maximum ratings: (1)Ambient Temperature under bias:–40 to +125℃; (2)Storage Temperature: –65 to +150℃; (3)Voltage on VDD with respect to VSS: 0 to +7.5 V; (4)Voltage on MCLR with respect to VSS: 0 to +14 V; (5)Voltage on all other pins with respect to VSS: –0.6 V to (VDD + 0.6 V); (6)Total Power Dissipation: 700 mW; (7)Max. Current out of VSS pin: 200 mA; (8)Max. Current into VDD pin: 150 mA; (9)Input Clamp Current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output Clamp Current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Max. Output Current sunk by any I/O pin: 25 mA; (12)Max. Output Current sourced by any I/O pin: 25 mA; (13)Max. Output Current sourced by I/O port (GPIO): 100 mA; (14)Max. Output Current sunk by I/O port (GPIO ): 100 mA.

Features

PIC12C508A features: (1)8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler; (2)Power-On Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (5)Programmable code-protection; (6)1,000,000 erase/write cycle EEPROM data memory; (7)EEPROM data retention > 40 years; (8)Power saving SLEEP mode; (9)Wake-up from SLEEP on pin change; (10)Internal weak pull-ups on I/O pins; (11)Internal pull-up on MCLR pin; (12)Selectable oscillator options: INTRC: Internal 4 MHz RC oscillator; EXTRC: External low-cost RC oscillator; XT: Standard crystal/resonator; LP: Power saving, low frequency crystal.

Diagrams

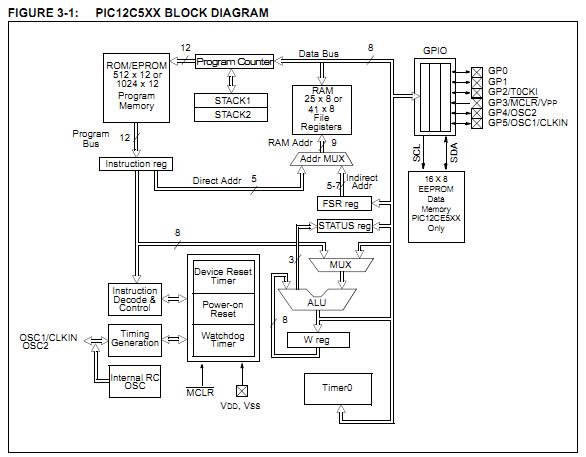

PIC12C508A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC12C508A
PIC12C508A

Other


Data Sheet

Negotiable
PIC12C508A/JW
PIC12C508A/JW

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O

Data Sheet

Negotiable
PIC12C508A-04/P
PIC12C508A-04/P

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz PDIP8

Data Sheet

0-1: $0.76
1-10: $0.61
10-25: $0.59
25-100: $0.58
PIC12C508A-04E/P
PIC12C508A-04E/P

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz ExtTemp PDIP8

Data Sheet

0-1: $0.89
1-10: $0.71
10-25: $0.70
25-100: $0.67
PIC12C508A-04/SM
PIC12C508A-04/SM

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz SOIC8

Data Sheet

0-1: $0.76
1-10: $0.61
10-25: $0.59
25-100: $0.58
PIC12C508A-04/SN
PIC12C508A-04/SN

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz SOIC8

Data Sheet

0-1: $0.78
1-10: $0.62
10-25: $0.61
25-100: $0.59
PIC12C508A-04I/SN
PIC12C508A-04I/SN

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz IndTemp SOIC8

Data Sheet

0-1: $0.87
1-10: $0.70
10-25: $0.68
25-100: $0.65
PIC12C508A-04E/SM
PIC12C508A-04E/SM

Microchip Technology

8-bit Microcontrollers (MCU) .75KB 25 RAM 6 I/O 4 MHz ExtTemp SOIC8

Data Sheet

0-1: $0.89
1-10: $0.71
10-25: $0.70
25-100: $0.67
