EPM7128STI100-10N

PLDs, 100-TQFP, EPM7128STI100-10N, –2.0 to 7.0 V, 5-ns, 175.4-MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~99.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~99.00

PartNumber:: EPM7128STI100-10N

Brand:: Altera Corporation - ALTR | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. David's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-23

From Other Seller

Part Number:EPM7128STI100-10N
US $1.00 - 99.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

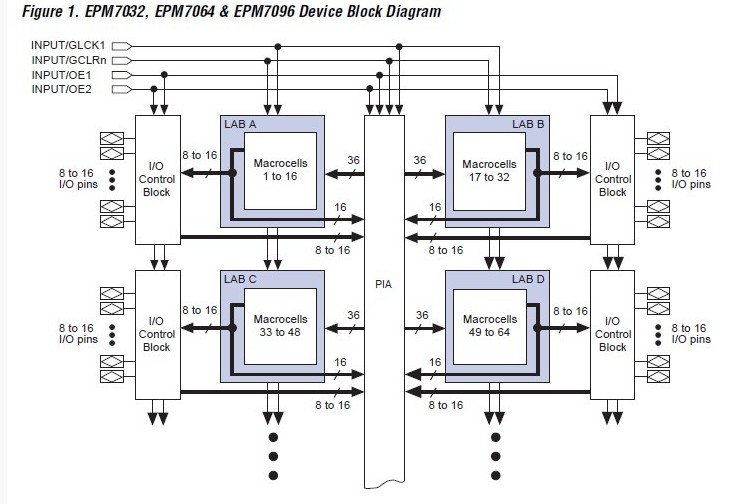

The EPM7128STI100-10N is a high-density, high-performance PLD. The device is based on Altera’s second-generation MAX architecture. The EPM7128STI100-10N is fabricated with advanced CMOS technology and the EEPROM-based MAX 7000 family provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6, -7, and -10 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.

Parametrics

EPM7128STI100-10N absolute maximum ratings: (1)VCC, Supply voltage with respect to ground: –2.0 to 7.0 V; (2)VI, DC input voltage with respect to ground: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TAMB, Ambient temperature Under bias –65 to 135℃; (6)TJ, Junction temperature: Ceramic packages, under bias: 150℃; PQFP and RQFP packages, under bias: 135℃.

Features

EPM7128STI100-10N features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAXR architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices; ISP circuitry compatible with IEEE Std. 1532; (3)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (4)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (5)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (6)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (7)PCI-compliant devices available.
