Product Summary
The IXFH40N30 is an N-channel enhancement mode. Applications of the IXFH40N30 are DC-DC converters, Synchronous rectification, Battery chargers, Switched-mode and resonant-mode power supplies, DC choppers, AC motor control, Temperature and lighting controls, Low voltage relays.
Parametrics
IXFH40N30 absolute maximum ratings: (1)VDSS TJ = 25℃ to 150℃: 300 V; (2)VDGR TJ = 25℃ to 150℃; RGS = 1 M: 300 V; (3)VGS Continuous: 20 V; (4)VGSM Transient: 30 V; (5)ID25 TC = 25℃ 35N30 35 A 40N30: 40 A; (6)IDM TC = 25℃, pulse width limited by TJM: 35N30 140 A 40N30 160 A; (7)IAR TC = 25℃: 35N30 35 A 40N30 40 A; (8)EAR TC = 25℃: 30 mJ; (9)dv/dt IS IDM, di/dt 100 A/s, VDD VDSS: 5 V/ns; (10)PD TC = 25℃: 300 W; (11)TJ: -55 : +150 ℃; (12)TJM: 150 ℃; (13)Tstg: -55 : +150 ℃; (14)TL 1.6 mm (0.062 in.)from case for 10 s: 300 ℃.
Features
IXFH40N30 features: (1)International standard packages; (2)Low RDS (on)HDMOS process; (3)Rugged polysilicon gate cell structure; (4)Unclamped Inductive Switching (UIS)rated; (5)Low package inductance - easy to drive and to protect; (6)Fast intrinsic Rectifier.

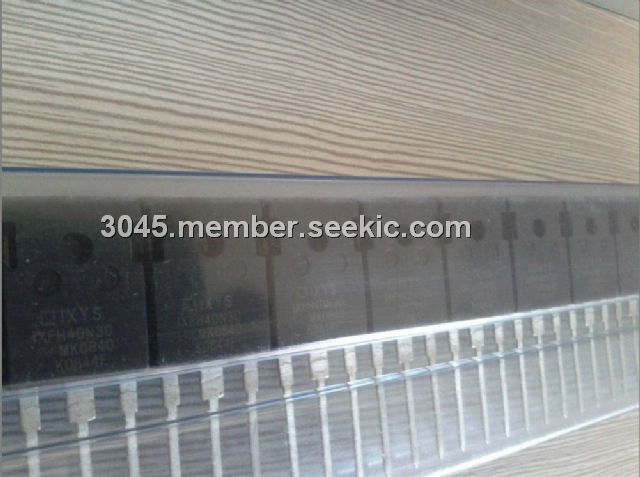

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
IXFH40N30 |
Ixys |
MOSFET 300V 40A |
Data Sheet |
Negotiable |
|
|||||
IXFH40N30Q |
Ixys |
MOSFET 300V 40A |
Data Sheet |
Negotiable |
|
