Product Summary

The TLP114 is a small outline coupler. It is suitable for surface mount assembly.The TLP114 consists of a high output power GaAAs light emitting diode, optically coupled to a high speed detector of one chip photodiode-transistor. Its applications include digital logic isolation, line receiver, power supply control feedback control, switching power supply and transistor inverter.

Parametrics

TLP114 absolute maximum ratings: (1)LED, Forward current, IF: 20 mA; Pulse forward current, IFP: 40 mA; Peak transient forward current, IFPT: 1 A; Reverse voltage, VR: 5 V; (2)Detector, Output current, IO: 8 mA; Peak output current, IOP: 16 mA; Supply voltage, VCC: -0.5 to 30 V; Output voltage, VO: -0.5 to 20 V; Output power dissipation, PO: 100 mW; (3)Operating temperature range, Topr: -55 to 100℃; (4)Storage temperature range, Tstg: -55 to 125℃; (5)Lead solder temperature(10 sec.), Tsol: 260℃; (6)Isolation Voltage (AC,1 min., R.H.≤ 60°%), BVS: 3750 Vrms.

Features

TLP114 features: (1)Isolation voltage: 3750 Vrms (min); (2)Switching speed: tpHL = 0.8μs, tpLH = 0.8μs (max)(RL = 1.9 kΩ); (3)TTL compatible; (4)UL recognized: UL1577, file no. E67349.

Diagrams

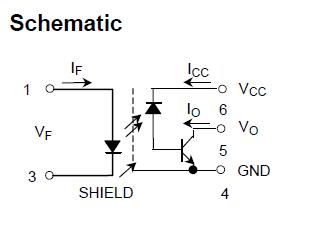

TLP114 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLP114ATPLF
TLP114ATPLF
Other

Data Sheet
Negotiable
TLP114AIGM
TLP114AIGM
Other

Data Sheet
Negotiable
TLP114A(TPR,F)
TLP114A(TPR,F)
Toshiba
High Speed Optocouplers IC cplr 1Mbps CTR=20%min
Data Sheet
Negotiable
TLP114A(TPR)
TLP114A(TPR)

TRANSCPLR HS TRANS OUT 6MFSOP-5
Data Sheet
Negotiable
TLP114A(IGM-TPRF)
TLP114A(IGM-TPRF)
Toshiba
High Speed Optocouplers MINIFLAT PKG COUPLER OPTOCPLR/SOLID STATE
Data Sheet
0-1: $1.24
1-10: $1.12
10-100: $0.95
100-250: $0.83
TLP114A(IGM)
TLP114A(IGM)
Other

Data Sheet
Negotiable
TLP114A
TLP114A
Other

Data Sheet
Negotiable
