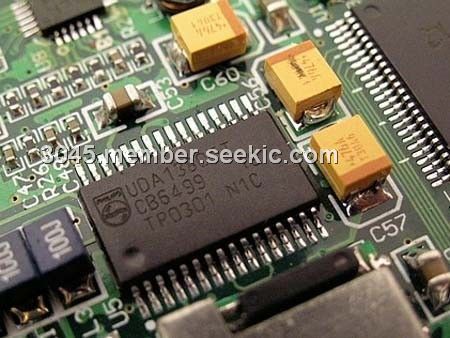

UDA1380TT

Product Summary

The UDA1380TT is a stereo audio coder-decoder, available in TSSOP32 (UDA1380TT) and HVQFN32 (UDA1380HN) packages. All functions and features are identical for both package versions. The UDA1380TT in this document refers to both UDA1380TT and UDA1380HN, unless particularly specified. The front-end of the UDA1380TT is equipped with a stereo line input, which has a PGA control, and a mono microphone input with an LNA and a VGA. The digital decimation filter is equipped with an AGC which can be used in case of voice-recording.

Parametrics

UDA1380TT absolute maximum ratings: (1)VDD supply voltage: 4 V; (2)Txtal(max)maximum crystal temperature: 150 ℃; (3)Tstg storage temperature: -65 to +125 ℃; (4)Tamb ambient temperature: -40 to +85 ℃; (5)Ves electrostatic handling voltage: -1100 to +1100 V; (6)Ilu(prot)latch-up protection current Tamb = 125 ℃; VDD = 3.6 V: 200 mA; (7)Isc(DAC)short-circuit current of DAC Tamb = 0 ℃; VDD = 3 V;output short-circuited to VSSA(DA)450 mA, output short-circuited to VDDA(DA)325 mA.

Features

UDA1380TT features: (1)2.4 to 3.6 V power supply; (2)5 V tolerant digital inputs (at 2.4 to 3.6 V power supply); (3)24-bit data path for Analog-to-Digital Converter (ADC)and Digital-to-Analog Converter (DAC); (4)Selectable control via L3-bus microcontroller interface or I2C-bus interface; choice of 2 device addresses in L3-bus and I2C-bus mode; (5)ADC part and DAC part can run at different frequencies, either system clock or Word Select PLL (WSPLL); (6)ADC and PGA plus integrated high-pass filter to cancel DC offset; (7)The decimation filter is equipped with a digital Automatic Gain Control (AGC); (8)Mono microphone input with Low Noise Amplifier (LNA)of 29 dB fixed gain and Variable Gain Control (VGA)from 0 to 30 dB in steps of 2 dB; (9)Integrated digital filter plus DAC; (10)Separate single-ended line output and one stereo headphone output, capable of driving a 16 W load. The headphone driver has a built-in short-circuit protection with status bits which can be read out from the; (11)L3-bus or I2C-bus interface; (12)Digital silence detection in the interpolator (playback)with read-out status via L3-bus or I2C-bus interface; (13)Easy application.

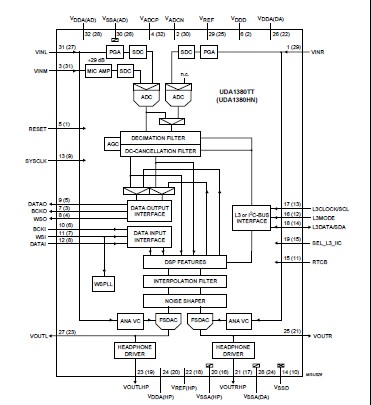

Diagrams
