Product Summary
The XC5204-6PQG100C is a Field-Programmable Gate Array. It is engineered to deliver the lowest cost of any FPGA family. By optimizing the new XC5204-6PQG100C architecture for TLM technology and 0.6-mm CMOS SRAM process, dramatic advances have been made in silicon efficiency. These advances position the XC5204-6PQG100C family as a cost-effective, high-volume alternative to gate arrays.
Parametrics
XC5204-6PQG100C absolute maximum ratings: (1)Supply voltage relative to GND: -0.5 to +7.0 V; (2)Input voltage with respect to GND: -0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output: -0.5 to VCC +0.5 V; (4)Storage temperature (ambient): -65 to +150 °C; (5)Maximum soldering temperature (10 s @ 1/16 in. = 1.5 mm): +260 °C; (6)Junction temperature in plastic packages: +125 °C; (7)Junction temperature in ceramic packages: +150 °C.
Features
XC5204-6PQG100C features: (1)High-density family of Field-Programmable Gate Arrays(FPGAs); (2)Design- and process-optimized for low cost; (3)0.6-mm three-layer metal (TLM) process; (4)System performance up to 50 MHz; (5)SRAM-based, in-system reprogrammable architecture; (6)Flexible architecture with abundant routing resources.

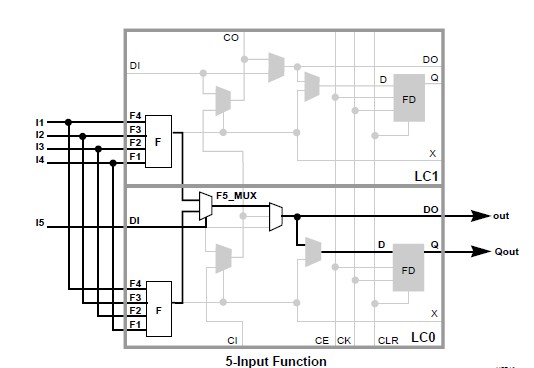

Diagrams
 |
