Product Summary

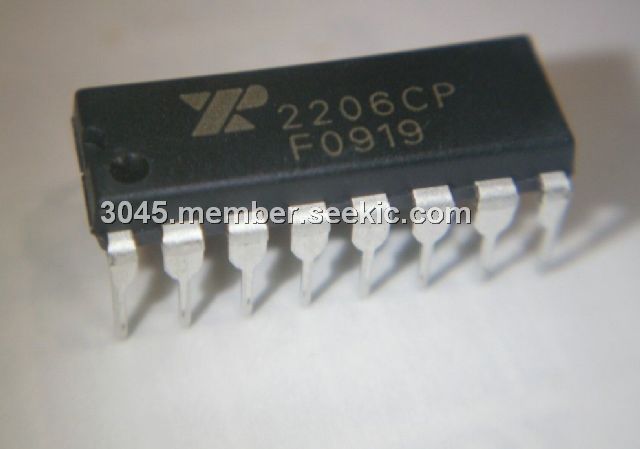

The 2206CP is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The circuit is ideally suited for communications, instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation. It has a typical drift specification of 20ppm/℃. The oscillator frequency can be linearly swept over a 2000:1 frequency range with an external control voltage, while maintaining low distortion.

Parametrics

2206CP absolute maximum ratings: (1)Power Supply: 26V; (2)Power Dissipation: 750mW; (3)Derate Above 25℃: 5mW/℃; (4)Total Timing Current: 6mA; (5)Storage Temperature: -65℃ to +150℃.

Features

2206CP features: (1)Low-Sine Wave Distortion, 0.5%, Typical; (2)Excellent Temperature Stability, 20ppm/℃, Typ.; (3)Wide Sweep Range, 2000: 1, Typical; (4)Low-Supply Sensitivity, 0.01%V, Typ.; (5)Linear Amplitude Modulation; (6)TTL Compatible FSK Controls; (7)Wide Supply Range, 10V to 26V; (8)Adjustable Duty Cycle, 1% TO 99%.

Diagrams

2206CP pin connection
