Product Summary
The op400gpz is a first monolithic quad operational amplifier that features OP77-type performance. Precision performance is not sacrificed with the op400gpz to obtain the space and cost savings offered by quad amplifiers. The op400gpz is pin-compatible with the LM148, HA4741, RM4156, and LT1014 operational amplifiers and can be used to upgrade systems having these devices. The op400gpz is an ideal choice for applications requiring multiple precision operational amplifiers and where low power consumption is critical.
Parametrics
op400gpz absolute maximum ratings: (1)Supply Voltage: ±20 V; (2)Differential Input Voltage: ±30 V; (3)Input Voltage Supply voltage Output Short-Circuit Duration: Continuous; (4)Storage Temperature Range P, Y Packages:-65°C to +150°C; (5)Lead Temperature (Soldering 60 sec): 300°C; (6)Junction Temperature (TJ)Range: -65°C to +150°C; (7)Operating Temperature Range: 0°C to 70°C.
Features
op400gpz features: (1)Low input offset voltage: 150 μV maximum; (2)Low offset voltage drift over -55°C to +125°C: 1.2 pV/°C maximum; (3)Low supply current (per amplifier): 725 μA maximum; (4)High open-loop gain: 5000 V/mV minimum; (5)Input bias current: 3 nA maximum; (6)Low noise voltage density: 11 nV/√Hz at 1 kHz; (7)Stable with large capacitive loads: 10 nF typical; (8)Pin-compatible to LM148, HA4741, RM4156, and LT1014, with improved performance; (9)Available in die form.

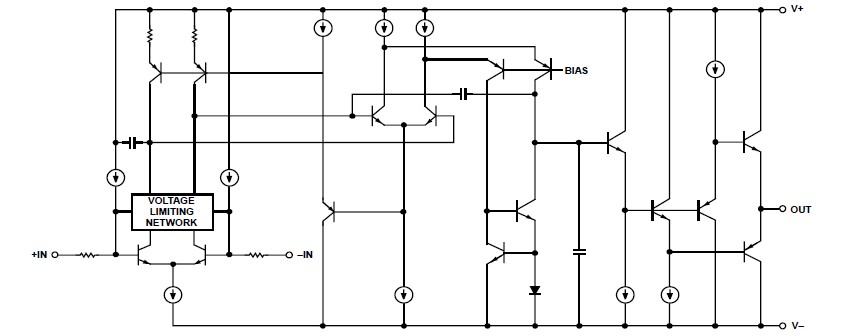

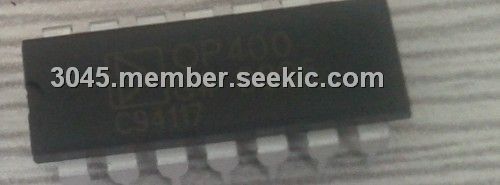

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OP400GPZ |
IC OPAMP GP 500KHZ QUAD LP 14DIP |
Data Sheet |
|
|
||||||||||||||||||
