Product Summary
The MRF160 is an N-channel broadband RF power mosfet. The MRF158 is designed primarily for wideband large–signal output and driver from 30–500 MHz.
Parametrics
MRF160 absolute maximum ratings: (1)Drain–Source Voltage VDSS: 65 Vdc; (2)Drain–Gate Voltage VDGO: 65 Vdc; (3)Gate–Source Voltage VGS: ±40 Vdc; (4)Drain Current — Continuous ID: 1 Adc; (5)Total Device Dissipation @ TC = 25℃ PD: 24 Watts; (6)Storage Temperature Range Tstg: –65 to +150 ℃; (7)Operating Junction Temperature TJ: 200 ℃.
Features
MRF160 features: (1)Typical Performance at 400 MHz, 28 Vdc Output Power = 4.0 Watts, Gain = 17 dB, Efficiency = 50%; (2)Excellent Thermal Stability, Ideally Suited for Class A Operation; (3)Facilitates Manual Gain Control, ALC and Modulation Techniques; (4)100% Tested for Load Mismatch at All Phase Angles with 30: 1 VSWR; (5)Low Crss – 0.8 pF Typical at VDS = 28 Volts.

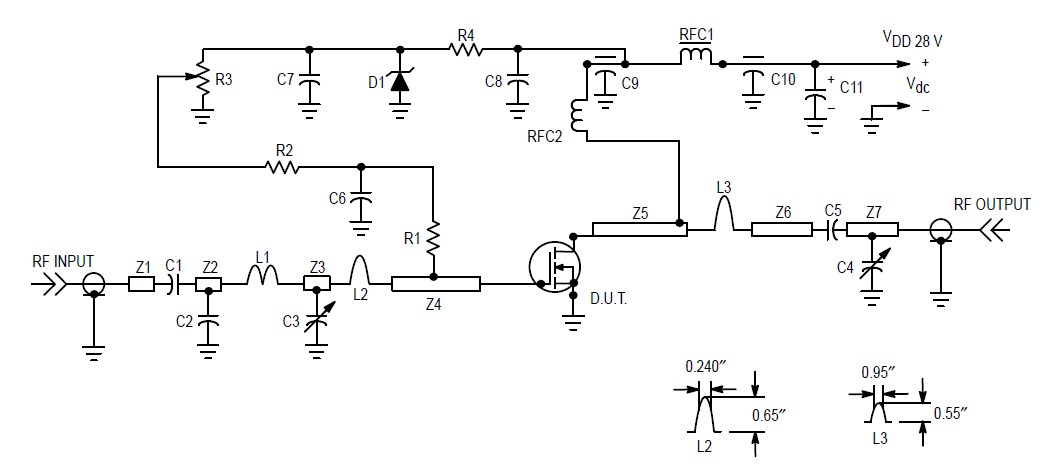

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MRF16006 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MRF16030 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MRF160 |
![]() M/A-COM Technology Solutions |
![]() Transistors RF MOSFET Power 5-500MHz 4Watts 28Volt Gain 16dB |
![]() Data Sheet |
![]()
|
|
