Product Summary

The PIC16F819-I/P is a 18/20-Pin Enhanced Flash Microcontroller with nanoWatt Technology. It belongs to the Mid-Range family of the PICmicro devices. The PIC16F819-I/P differs from each other in the amount of Flash program memory, data memory and data EEPROM.

Parametrics

PIC16F819-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: -0.3 to +14V; (6)Total power dissipation: 1W; (7)Maximum current out of VSS pin: 200 mA; (8)Maximum current into VDD pin: 200 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA: 100 mA; (14)Maximum current sourced by PORTA: 100 mA.

Features

PIC16F819-I/P features: (1)100,000 erase/write cycles Enhanced Flash program memory typical; (2)1,000,000 typical erase/write cycles EEPROM data memory typical; (3)EEPROM Data Retention: > 40 years; (4)In-Circuit Serial Programming (ICSP) via two pins; (5)Processor read/write access to program memory; (6)Low-Voltage Programming; (7)In-Circuit Debugging via two pins.

Diagrams

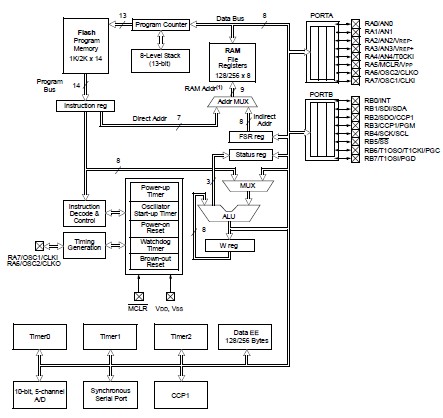

PIC16F819-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F819-I/P
PIC16F819-I/P

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 256 RAM 16 I/O

Data Sheet

0-1: $1.58
1-10: $1.26
10-25: $1.22
25-100: $1.17
