Product Summary
The PIC17C756A-33I/PT is a high-performance 8-bit cmos eprom microcontroller with 10-bit a/d.
Parametrics
PIC17C756A-33I/PT absolute maximum ratings: (1)Ambient temperature under bias: -55°C to +125°C; (2)Storage temperature : -65°C to +150°C; (3)Voltage on VDD with respect to VSS : 0V to +7.5V; (4)Voltage on MCLR with respect to VSS (Note 2): -0.3V to +14V; (5)Voltage on RA2 and RA3 with respect to VSS: -0.3V to +8.5V; (6)Voltage on all other pins with respect to VSS : -0.3V to VDD + 0.3V; (7)Total power dissipation (Note 1): 1.0W.
Features
PIC17C756A-33I/PT features: (1)Only 58 single word instructions to learn; (2)All single cycle instructions (121 ns) except for program branches and table reads/writes which are two-cycle; (3)Operating speed; (4)DC - 33 MHz clock input; (5)8 x 8 Single-Cycle Hardware Multiplier; (6)Interrupt capability; (7)16 level deep hardware stack; (8)Direct, indirect, and relative addressing modes; (9)Internal/external program memory execution,; (10)Capable of addressing 64K x 16 program memory space.

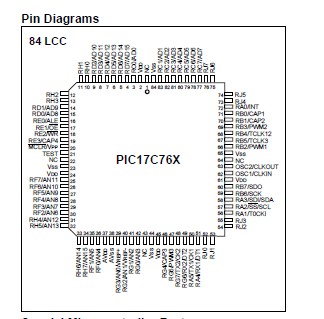

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC17C756A-33I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 32KB 902 RAM 50 I/O |
Data Sheet |
|
|
||||||||||||
