Product Summary

The TD62503FNG is a single driver. The TD62503FNG is comprised of seven or five NPN Transistor Arrays. Applications of the TD62503FNG include relay, hammer, Lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

TD62503FNG absolute maximum ratings: (1)Collector-emitter voltage VCEO: 35 V; (2)Collector-base voltage VCBO: 50 V; (3)Collector current IC: 200 mA/ch; (4)Input voltage VIN: -0.5 to 30 V; (5)Power dissipation PD: 0.78 W; (6)Operating temperature Topr: -40 to 85 ℃; (7)Storage temperature Tstg: -55 to 150 ℃.

Features

TD62503FNG features: (1)Output current (single output)200 mA max; (2)High sustaining voltage output 35 V min; (3)Inputs compatible with various types of logic.; (4)TD62502FNG: RIN = 10.5 kΩ + 7 V Zener diode··· 14 V to 25 V P-MOS; (5)TD62503FNG: RIN = 2.7 kΩ··· TTL, 5 V C-MOS; (6)TD62504FNG: RIN = 10.5 kΩ··· 6 V to 15 V P-MOS, C-MOS; (7)Package type: SSOP-16 pin (0.65 mm pitch).

Diagrams

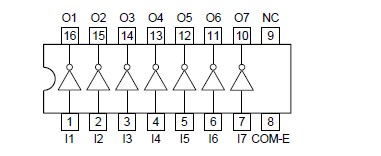

TD62503FNG pin connection
