Product Summary
The TMPN3120FE3M is a Neuron Chip. It provides double the performance of previous Neuron Chips. The TMPN3120FE3M supports a response time of 3 to 4 ms across a LONWORKs Network and has double the input/output (I O) performance of the previous Neuron Chip in terms of both response time and data transmission speed. The TMPN3120FE3M features an extra single-chip memory in the form of 2 Kbytes EEPROM, 2 Kbytes SRAM and 16 Kbytes ROM. The TMPN3120FE3M is therefore suitable for applications which require complex operations and high speed communication control.
Parametrics
TMPN3120FE3M absolute maximum ratings: (1)Power Supply Voltage, VDD: -0.3 to 7.0 V; (2)Input Voltage, VIN: -0.3 to VDD + 0.3 V; (3)Power Dissipation, PD: 800 mW; (4)Storage Temperature, Tstg: -65 to 150℃.
Features
TMPN3120FE3M features: (1)Main features of the 20 MHz Neuron Chip; (2)Increased communication speed, The maximum transmission speed has been increased two-fold; 1.25 Mbps → 2.5 Mbps; (3)Shortened response time; (4)The amount of time required from I/O input to I/O output has been greatly reduced; (5)Maximum speed 7 ms → 3~4 ms; (6)Increased IO object speed ; (7)The execution time for all objects has been halved Example) Serial I / O 9600 bps; Parallel I/O 1.2 μs/byte.

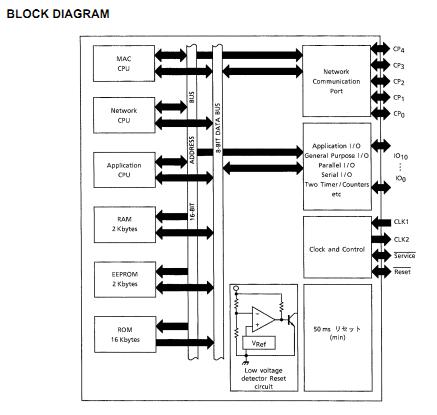

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMPN3120FE3M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMPN3120FE3MG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMPN3120FE3MG(I) |
Toshiba |
Network Controller & Processor ICs Neuron Chip w/ 2 KB EEPROM |
Data Sheet |
Negotiable |
|
||||
