AT24C64CN-SH-T

2-Wire Serial EEPROM, Low-voltage, Standard-voltage Operation, 5.0mA, SOP8, High Reliability

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~99.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~99.00

PartNumber:: AT24C64CN-SH-T

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. David's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-20

From Other Seller

Part Number:AT24C64CN-SH-T
US $0.10 - 99.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

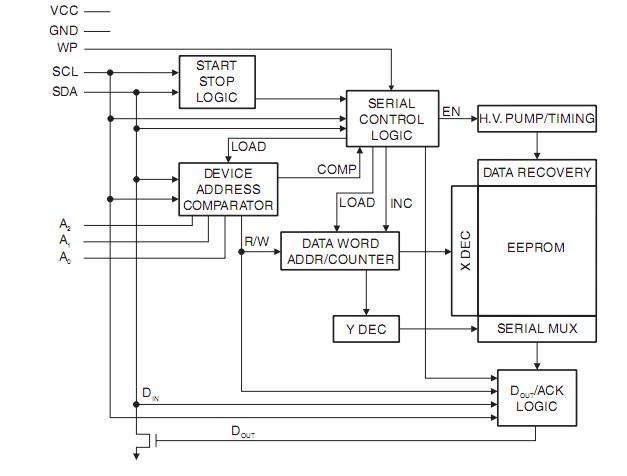

The AT24C64CN-SH-T is a 2-Wire Serial EEPROM. It provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each. The AT24C64CN-SH-T is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C64CN-SH-T is available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP, 8-lead Ultra Thin Mini-MAP (MLP2x3) and, 8-ball dBGA2 packages and is accessed via a 2-wire serial interface.

Parametrics

AT24C64CN-SH-T absolute maximum ratings: (1)Operating Temperature:-55 to +125℃; (2)Storage Temperature:-65 to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0 to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.

Features

AT24C64CN-SH-T features: (1)Low-voltage and Standard-voltage Operation: 1.8 (VCC = 1.8 to 5.5V); (2)Internally Organized 4096 x 8, 8192 x 8; (3)2-Wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bi-directional Data Transfer Protocol ; (6)1 MHz (5.0V) and 400 KHz (1.8V Compatibility); (7)Write Protect Pin for Hardware Data Protection; (8)32-Byte Page Write Mode (Partial Page Writes Allowed); (9)Self-Timed Write Cycle (5 ms max); (10)High Reliability: Endurance: 1 Million Write Cycles, Data Retention: 100 Years; (11)Lead-free/Halogen-free Devices; (12)8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP, 8-lead Ultra Thin Mini-MAP(MLP2x3), and 8-ball dBGA2 Packages; (13)Die Sales: Wafer Form, Waffle Pack, and Bumped Wafers.
