Product Summary
The MC10116P is a triple differential amplifier designed for use in sensing differential signals over long lines. The base bias supply (VBB) is made available at pin 11 to make the MC10116P useful as a Schmitt trigger, or in other applications where a stable reference voltage is necessary. Active current sources provide the MC10116P with excellent common mode noise rejection. If any amplifier in a package is not used, one input of that amplifier must be connected to VBB (pin 11) to prevent upsetting the current source bias network. Complementary outputs are provided to allow driving twisted pair lines, to enable cascading of several amplifiers in a chain, or simply to provide complement outputs of the input logic function.
Parametrics
MC10116P absolute maximum ratings: (1)Power Supply Drain Current IE : 23 mAdc; (2)Input Current IinH: 150 : mAdc, ICBO: 1.5 mAdc; (3)Output Voltage Logic 1 VOH : –1.060Vdc; (4)Output Voltage Logic 0 VOL: –1.890Vdc; (5)Threshold Voltage Logic 1 VOHA : –1.080Vdc; (6)Threshold Voltage Logic 0 VOLA: –1.655Vdc; (7)Reference Voltage VBB: –1.420Vdc.
Features
MC10116P features: (1)PD = 85 mW typ/pkg (No Load); (2)tpd = 2.0 ns typ; (3)tr, tf = 2.0 ns typ (20%–80%).

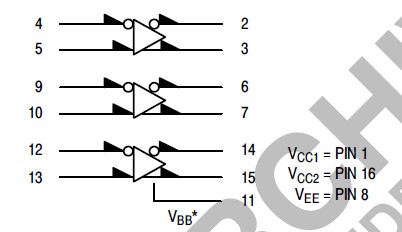

Diagrams
 |
